Herbicides Automatic Agricultural Pesticide Spraying Robot Fertilizers

Product Categories
Shanghai YoungYou Intelligence Co.,Ltd.
Contact Now

Herbicides Automatic Agricultural Pesticide Spraying Robot Fertilizers

  • 1
  • 2
  • 3

Brand Name : YOUNGYOU

Model Number : YYAR-012

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiate

Supply Ability : 5/month

Packaging Details : Foam protection + wooden box + container

Size : 2300×920×2300mm

Medicine box capacity : 300L

Minimum ground clearance : 130mm

Engine brand : YAMAHA

Climbing ability : ≤20°

Walking speed : 0.75~7.7km/h

reverse speed : 0.65~2.49

work efficiency : 40000~67000m²/h

Contact Now

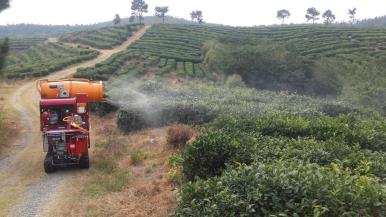

Agricultural spraying apply herbicides/pesticides/and fertilizers on agricultural crops

The automation of agricultural process is expected to maximize the personal safety of agricultural personnel by reducing waste and improving food security. Remote control spraying can reduce the operator's close bodily harm. In this work, robot has developed a new intelligent electric sprayer which can be assembled on the robot. The robot can complete self climbing / forward / backward / spraying pesticide under remote control after charging, and human-machine cooperation has also been applied to agricultural sprayer.

model unit YYAR-01
size mm 2300×920×2300
Medicine box capacity L 300
Minimum ground clearance mm 130
Engine brand Yamaha
Power of traveling engine kW 5.4
Power of air driven generator kW 5
Climbing ability Drgee ≤20°
Left and right track inclination Drgee ≤15°
Walking speed km/h 0.75~7.7
reverse speed km/h 0.65~2.49
work efficiency acre/h 9.89~16.47
Working pressure of liquid pump Mpa 2.0~3.5
Liquid pump flow L/min 28~45
Fan power KW 3
Static wind range m 5~30
Single nozzle flow L/min(1.5 Mpa) 0.63
Battery type lithium battery
Battery capacity AH 15
Endurance capability h 7
Remote control distance m 0~50

Herbicides Automatic Agricultural Pesticide Spraying Robot Fertilizers

Herbicides Automatic Agricultural Pesticide Spraying Robot Fertilizers

Herbicides Automatic Agricultural Pesticide Spraying Robot FertilizersHerbicides Automatic Agricultural Pesticide Spraying Robot Fertilizers

Herbicides Automatic Agricultural Pesticide Spraying Robot Fertilizers

Herbicides Automatic Agricultural Pesticide Spraying Robot Fertilizers
